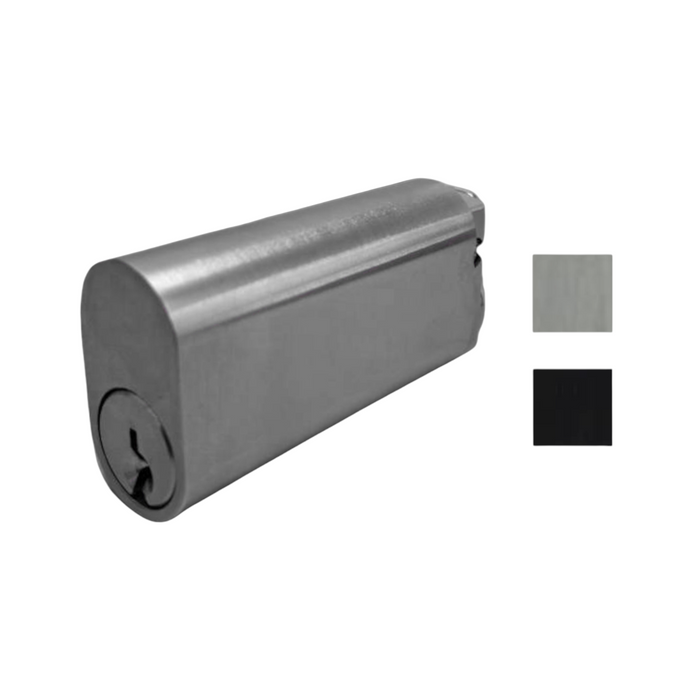

'Oval EXT.' LOCK CYLINDER - 570 Extended Type (Art. 410 Series)
Description
PRODUCT OVERVIEW
The LOCKTON 410 Extended Series is a commercial-grade, 6-pin solid brass cylinder designed to fit locks requiring an Australian 570 oval profile. It retrofits most Commercial Mortice locks commonly found in the market.
Ideal for residential, commercial, and high-security applications including restricted inline keying systems. Available in Satin Chrome and Matte Black.
LOCKING MECHANISMS
- Re-keyable 6-pin C4 cylinder
- Configuration: Keyed to Differ, Keyed Alike or Less Barrel
- Compatible with inline restricted keying systems using the LOCKTON FISHTAIL Series
- Comes with Z, X, W & "Rabbit Ear" cams (4 most common cam types in Australia)
ACCESS METHODS
- Manually operated via key
- Cylinder profile: C4 (LW5)
- Re-keyable to suit restricted systems w/ LOCKTON FISHTAIL Series
PERFORMANCE
- Solid brass construction
- Fire tested & passed up to 4 hours
- Cylinder Security Rating: Sc8
- 10 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x LOCKTON 570 Extended Oval Cylinder
- 2 x Keys
- 4 x Cams (Z, X, W & Rabbit Ear)
SPECIFICATIONS
| Specification | Details |
|---|---|
| Material | Solid Brass |
| Finish | Satin Chrome or Matte Black (PVD) |
| Cylinder Profile | C4 (LW5) |
| Keying Options | KA - KD - ALB (Less Barrel) |
| Additional Keying Options | Restricted Inline Key Systems |
| Cam Types Included | Z, X, W & Rabbit Ear |
| Cylinder Length | 50 mm or 62 mm |
| Suitable Door Thicknesses | 66 - 85 mm (410/50) or 85 - 110 mm (410/62) |
| Fire Rating | 4 Hours |
| Security Rating | Sc8 |
| Warranty | 10 Years More Info |
