'LEG-TON™' LOCK FURNITURE - Square End (Art. LG Series)
Description
PRODUCT OVERVIEW
The LOCKTON 'LEG-TON™' Wide Square End Mortice Furniture Series is designed to be an interchangeable furniture solution for all major Australian & New Zealand Mortice Lock Furniture brands such as LEGGE™, DORMAKABA™, LOCKWOOD™ and LOCKTON™.
Ideal for commercial, residential, and institutional applications, this range features a modern square-end design and handles that comply with DDA accessibility requirements under AS1428.1-2009.
LOCKING MECHANISMS
- Suits most 60mm Australian mortice locks
- Compatible with mortice locks (60mm and 95mm backsets)
- Multiple Furniture Configurations to suit a variety of access requirements (such as Cylinder Hole, Turn Snib, Pull Handle etc)
- Quality return spring for lever operation.
- External Furniture comes with a multi-thread design that aligns with every common mounting screw pattern
- Internal Furniture comes with an easy to fit rotatable insert - Select Top Hole for LEGGE™ or Bottom Hole for all other brands.
ACCESS METHODS
A wide variety of Access Options such as:
- Operated via physical key through cylinder hole
- Lever handle for ease of use.
- Turn Snib in Handle (Multiple Options)
- Emergency (Turn) Release (Multiple Options)
- Blank Plates
PERFORMANCE
- Solid brass construction for strength and durability
- Fire tested up to 4 hours
- Durability rating: 500,000 cycles
- Physical security rating: SL8
- Cylinder security rating: Sc8
- 10 Year Warranty*.
INCLUDED COMPONENTS
- 1 × Wide Plate Furniture (Square End)
- 2 × M4 fixing screws
- 1 x Screw Position Insert (Internal Furniture Only)
- Installation instructions.
FUNCTIONS & RANGE
External Plates

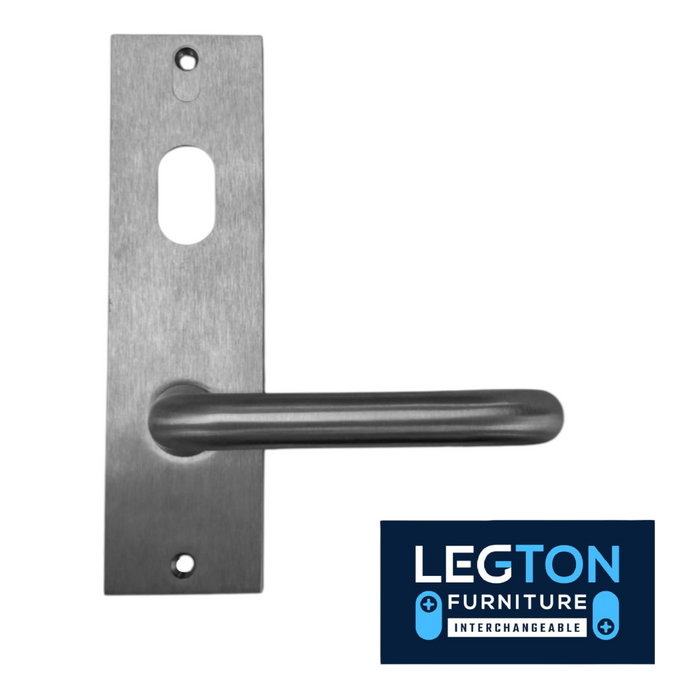

- Art. LG-702-01C-25-SCP - Cylinder Hole & Lever
- Art. LG-703-02C-25-SCP - Lever Only
- Art. LG-704IND-53C-25-SCP - Ind. Emergency Turn & Lever
- Art. LG-706-04C-SCP - Cylinder Hole Only
- Art. LG-708-05C-SCP - Plain Plate
Internal Plates
- Art. LG-711-01V-25-SCP - Cylinder Hole & Lever
- Art. LG-712-02V-25-SCP - Lever Only
- Art. LG-714-13V-25-SCP - Turn Snib & Lever
- Art. LG-715-04V-SCP - Cylinder Hole Only
- Art. LG-754IND-63VDA-25-SCP - Ind. DA Turn Snib & Lever
SPECIFICATIONS
| Specification | Details |
|---|---|
| Plate Dimensions (L x W x D) | 175 mm x 48 mm x 12 mm |
| Mounting Screw Spacing | 148 mm or 158 mm |
| Material | Solid Brass |
| Finish | Satin Chrome |
| Handing | Non-Handed (Easy Change) |
| Mounting Screw Size | M4 x 68 mm |
| Backset Compatibility | 60 mm & 95 mm |
| Warranty | 10 Years More Info |
Lockwood, Dormakaba and Legge are trademarks of their respective owners.*
