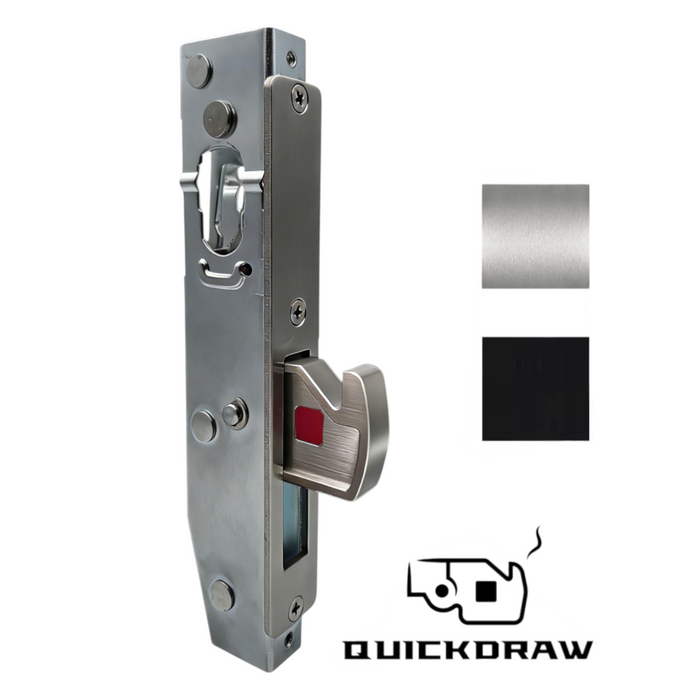

'QuickDraw' SWING BOLT (590) Mortice Lock (Art. 590ML-QD Series)
Description
PRODUCT OVERVIEW
The LOCKTON 'QuickDraw' 590 Swingbolt Mortice Lock Series is designed for metal and glass doors in commercial settings such as storage units and shop fronts. With newly developed accessories, the system can now be adapted for select timber door applications, adding extra versatility when required.
"Strength, Speed, Compatibility — in One Lock Series"
The QUICKDRAW range has been purpose‑designed to retrofit existing 590 mortice locks while delivering significant performance enhancements such as - greater strength, smoother performance, and effortless adaptability as security needs evolve.
Its quick‑change bolt design, premium finishes, and compatibility with DDA‑appropriate options like the ‘QuickDraw’ Exit Snib LOCKTON Art. 590CYL-13VDA and Escape Lever Art. 590CYL-EL Oval 'QuickDraw' Escape Lever (sold separately) create a modern, accessible upgrade for a wide range of spaces.
The series is available in Satin Stainless Steel or Matte Black Finishes for a sleek and professional appearance.
- Available in all common configurations to suit Sliding & Hinged door applications
- QuickDraw system enables fast conversion between bolt types
- Operated via physical key or Turn Snib
- Suits any common Oval Cylinder (like LOCKTON Art. 410 Series)
- Designed for commercial-grade metal and glass doors
- Stainless Steel Bolt & Faceplate for enhanced durability
- 10 Year Warranty (*)
- 1 x LOCKTON 590 QuickDraw Mortice Lock
- Escutcheons and fixing hardware
| Specification | Details |
|---|---|
| Bolt Type | Straight or Hook |
| Bolt Length | 22 mm or 36 mm (Straight) & 28 mm (Hook) |
| Material | Stainless Steel |
| Finish | Satin Stainless Steel or Matte Black |
| Lock Body Dimensions (L x W x D) | 181 mm x 36 mm x 18.4 mm |
| Cylinder Type | Oval |
| Warranty | 10 Years More Info |
