'Swing Bolt' MORTICE LOCK (Art. 590ML Series)
Description
PRODUCT OVERVIEW

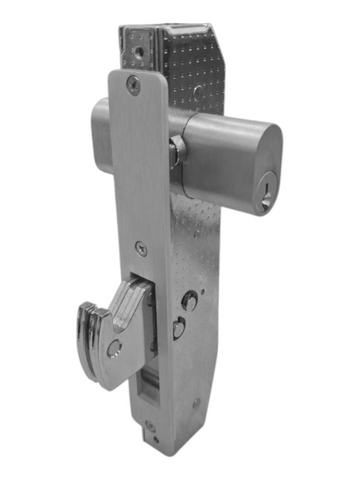

The LOCKTON Art. 590ML-28HKB Hook Bolt Deadlocking Mortice Lock is designed for metal and glass doors in commercial settings such as storage units and shop fronts.
This lock features a 28mm hook bolt and includes a spring-loaded latching strike for enhanced security. It comes pre-fitted with 2 x Keyed Alike C4 570 Oval Cylinders and includes all necessary fixing hardware and escutcheons.
Compatible with the LOCKTON Art. 410-SC-TURN Oval Turn Snib (sold separately).
LOCKING MECHANISMS
- Hook bolt deadlocking mechanism
- Double cylinder configuration (Keyed Alike)
- Spring-loaded latching strike included
- Compatible with Oval Turn Snib (Art. 410-SC-TURN)
ACCESS METHODS
- Operated via physical key
- Cylinder profile: C4 570 Oval
- Supplied with 2 x Keyed Alike cylinders
PERFORMANCE
- Designed for commercial-grade metal and glass doors
- Satin Chrome finish for corrosion resistance
- Includes latching strike for added security
- 10 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x LOCKTON 590 Hook Bolt Mortice Lock
- 2 x Keyed Alike C4 570 Oval Cylinders
- 1 x Spring-loaded Latching Strike
- Escutcheons and fixing hardware
SPECIFICATIONS
| Specification | Details |
|---|---|
| Bolt Type | Hook Bolt |
| Bolt Length | 28 mm |
| Backset | 23 mm |
| Finish | Satin Chrome |
| Lock Body Dimensions (L x W x D) | 180 mm x 36 mm x 17 mm |
| Cylinder Type | Double Cylinder (Keyed Alike) |
| Warranty | 10 Years More Info |
