Cylindrical LEVERSET - Clutching (Art. EU6000CL Series)
Description
PRODUCT OVERVIEW

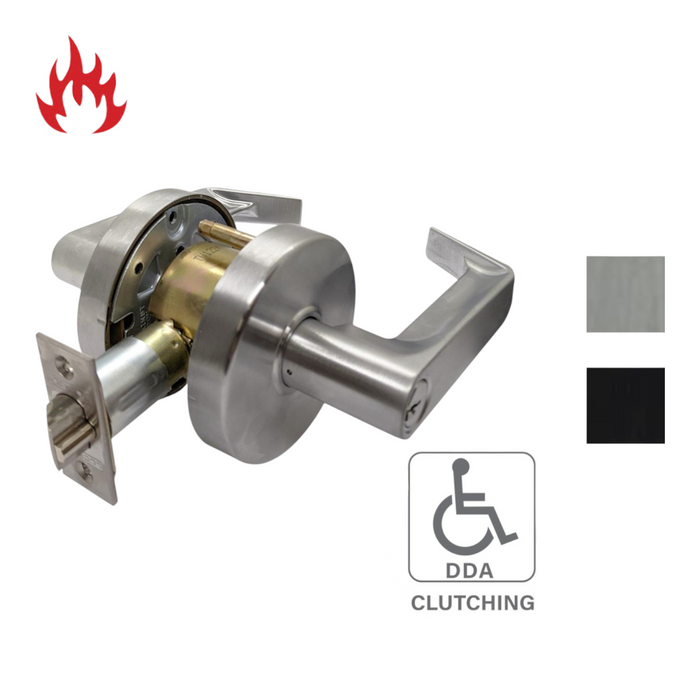

The LOCKTON Art. EU6000 CL Series Cylindrical Leverset – Clutching Model is a commercial-grade lockset designed for timber and metal doors in residential, commercial, and institutional environments.
Compliant with DDA (Disability Discrimination Act) requirements, this model ensures ease of access while incorporating a clutching mechanism for enhanced durability and security in high-traffic areas. Featuring an 85mm rose, 70mm backset, and a 6-pin C4 PD cylinder compatible with most restricted key systems, it is tested to meet commercial specifications and fire-rated for up to 2 hours.
Available in Satin Chrome or Matte Black finishes, the EU6000 CL Series delivers strength, reliability, and a sleek professional look.
- Cylindrical latch mechanism
- Supplied with 6-pin C4 PD cylinder
- Keyed to Differ (KD) configuration
- Accepts most restricted key systems
- Standard “T” strike included
- Operated via physical key
- Push-button locking (where applicable)
- Cylinder profile: C4 (LW5)
- Re-keyable to suit restricted systems
- Commercial-grade construction
- Fire tested up to 2 hours (AS1905 / AS1530)
- Cycle tested to 400,000 operations
- Suits door thickness: 35mm–45mm (up to 50mm with conversion kit)
- 10 Year Warranty*
- 1 × LOCKTON '6000 Series' Cylindrical Leverset – Clutching
- 2 × Keys
- Fixing screws
- Strike plate
- Installation instructions
The LOCKTON 6000 Clutching Series is available in the following functional configurations:
- Entrance – Push-button locking; outside lever locks until unlocked by key or inside lever turn. Inside lever always free for exit.
- Classroom – Key required to lock/unlock outside lever; inside lever always free for exit.
- Storeroom – Outside lever always locked; entry by key only; inside lever always free for exit.
| Specification | Details |
|---|---|
| Backset | 70 mm |
| Rose Diameter | 85 mm |
| Cylinder Profile | C4 (LW5) |
| Cylinder Type | 6-Pin PD |
| Door Thickness Range | 35 - 51 mm |
| Door Prep | 54 mm Diameter Cross Bore |
| Finish | Satin Chrome or Matte Black |
| Cycle Rating | 400,000 Operations |
| Fire Rating | 2 Hours |
| Warranty | 10 Years More Info |
