'Double Door' PANIC EXIT KIT - Wide (Art. SGPD250-WD-DDKIT)
Description
PRODUCT OVERVIEW
The LOCKTON Art. SGPD250-WD-F-DDKIT Panic Exit Wide DOUBLE DOOR KIT – FIRE RATED is a complete emergency egress solution for wide double doors in commercial and fire-rated environments.
This kit includes two panic bars (single and double point locking) and an overlapping strike, designed for rim-type installation. Constructed from 304B stainless steel, it offers high durability, corrosion resistance, and complies with BS EN1125 standards.
Suitable for wide door widths (1120mm) and heights (2438mm), with cut-down options available for smaller doors.
LOCKING MECHANISMS
- Single Point & Double Point Fire Rated Panic Bars
- High shock-resistant latching mechanism
- Latch automatically dead-latches when door is closed
- Rim type installation
- Non-handed design
ACCESS METHODS
- Internal push bar activation
- External access via 201 “Round” Cylinder (optional)
- Alternative external access options available
PERFORMANCE
- 304B Stainless Steel construction
- Fire rated (complies with BS EN1125)
- Corrosion-resistant internal components
- Suits wide door sizes; cuttable by up to 170mm
- 10 Year Warranty*

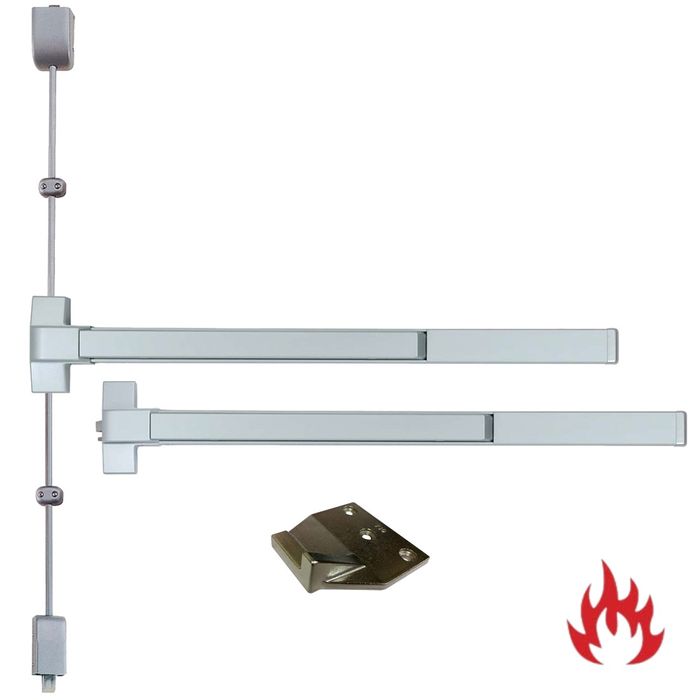

INCLUDED COMPONENTS
- 1 x Single Point Wide Fire Rated Panic Bar
- 1 x Double Point Wide Fire Rated Panic Bar
- 1 x Overlapping Strike
SPECIFICATIONS
| Specification | Details |
|---|---|
| Material | 304B Stainless Steel |
| Finish | Silver |
| Handing | Non-Handed |
| Door Width | 1120 mm (cuttable by up to 170 mm) |
| Door Height | 2438 mm |
| Fire Rating | Up to 2 Hours |
| Compliance | BS EN1125 |
| Warranty | 10 Years More Info |
