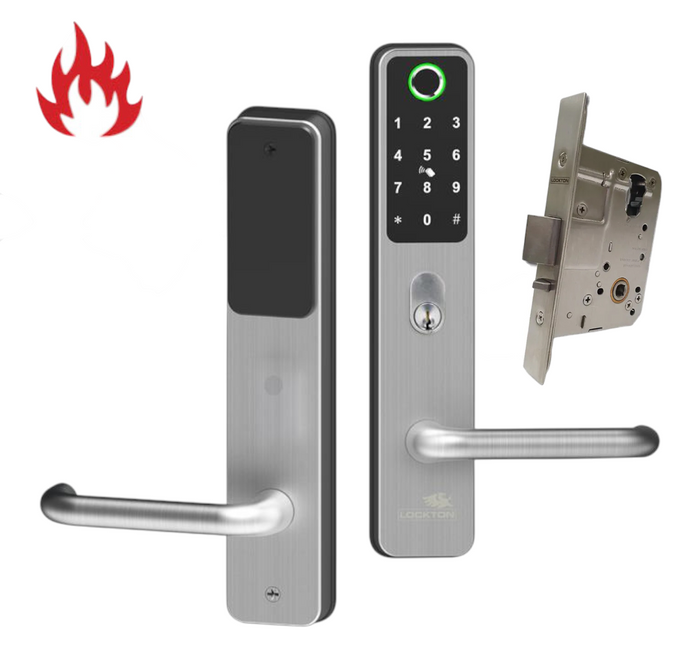

'CADELL52' SMART DOOR LOCK *SATIN STAINLESS STEEL* (Art. CADELL52-SSS Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. CADELL52-SSS Series Electronic Lever Mortice Lock (Satin Stainless Finish) is part of the advanced LOCKTON 'E-Series' range, designed for both commercial and domestic applications including apartment blocks, schools, hospitals, government buildings, and private residences.
The CADELL52 is engineered to retrofit over existing Australian mortice lock installations and can replace most knobsets, leversets, and deadbolts.
It features IP66-rated handles (internal and external), making it suitable for almost any environment. The CADELL52 is supplied with either 60mm or 95mm Backset LOCKTON Mortice Locks
LOCKING MECHANISMS
- Access via PIN Code, Fingerprint, RFID Tag, Bluetooth/App Control, and Key Override
- Key Override via 6-Pin C4 Rekeyable Oval Cylinder (convertible to restricted profiles)
- Internal handle set as Passage (convertible to Turn Snib with included kit)
- Compatible with TTLOCK App for full lock management
- Optional Gateway accessory for remote internet access
ACCESS METHODS
- TTLOCK App (Bluetooth)
- PIN Code
- RFID Tag (up to 1000 programmable tags)
- Fingerprint (up to 100 unique users)
- Physical Key Override (C4 Oval Cylinder)
PERFORMANCE
- IP66 Rated (external & internal handles)
- Fire tested: 2-Hour rating
- Physical Security Rating: SL8
- Durability Rating: D8 (500,000 cycles)
- Complies with AS1428.1-2009 (Disability Access)
- 3 Year Electronic Warranty (*)
- 10 Year Mechanical Warranty (*)
INCLUDED COMPONENTS
- 1 x CADELL52 Satin Stainless Smart Lock Handle Set
- 2 x RFID Key Fobs
- 3 x Screw/Spindle Packs (for varying door thicknesses)
- 4 x AAA Batteries
- 1 x SG-ML60 60mm Backset Mortice Lock OR 1 x SG-ML95 95mm Backset Mortice Lock
- 1 x 6-Pin C4 Oval Cylinder
- 1 x Turnsnib Conversion Kit
- 1 x Fitting Template
- 1 x Instruction Manual
SPECIFICATIONS
| Specification | Details |
|---|---|
| Finish | Satin Stainless Steel |
| IP Rating | IP66 |
| Lock Backset | 60 mm OR 95 mm |
| Standard Faceplate Dimensions (L x W) | 175 x 25 mm ( See downloads for more) |
| Standard Strike Plate Dimensions (L x W) | 70 x 46 mm ( See downloads for more) |
| Handle Set Dimensions (H x W x D) | 263 x 52 x 22 mm |
| Handle Projection | 48 mm |
| Furniture Material Thickness | 2 mm (304 Stainless Steel) |
| Suitable Door Thickness | 32 - 60 mm |
| Suitable Door Weight | 20 - 120 kg |
| Battery Type | 4 x 1.5V AAA Alkaline |
| Battery Life | Approx. 1 Year |
| Warranty | 3 Year Electrical / 10 Year Mechanical More Info |
