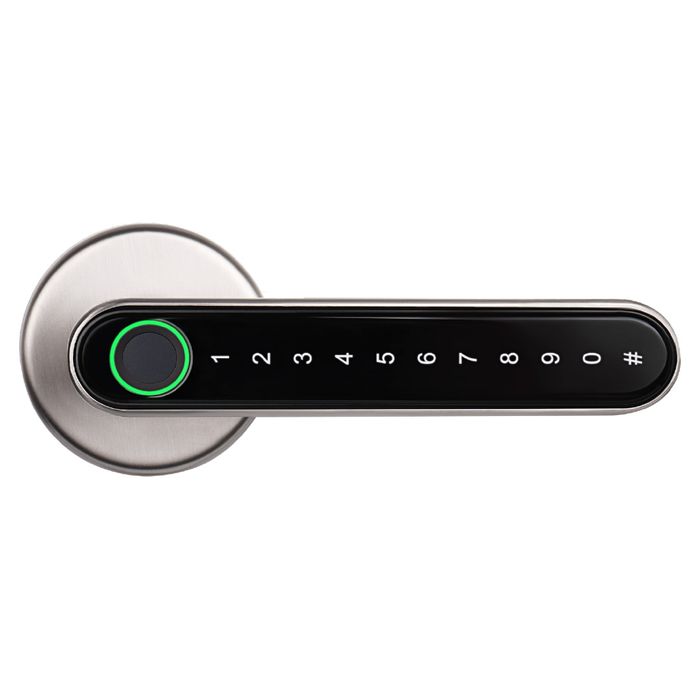

'ELEV64' SMART DOOR LOCK *SILVER* (Art. ELEV64-SIL Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. ELEV64-SIL 'E-Series' Round Rose Leverset Smart Door Lock is designed for domestic and office applications requiring a sleek, modern locking solution.
This smart lock offers fingerprint, digital PIN code, and mobile app access. It retrofits most residential and commercial knobsets and leversets and includes a 60–70mm adjustable latch. The fingerprint sensor is ergonomically positioned on the lever for natural thumb access. Note: Suitable for internal doors and external doors that are protected from the elements.
LOCKING MECHANISMS
- Emergency Key Override
- Adjustable 60–70mm backset latch
- Compatible with TTLOCK App for full lock management
ACCESS METHODS
- TTLOCK App (Bluetooth)
- PIN Code
- Fingerprint (up to 100 users)
- Physical Key Override
PERFORMANCE
- Suitable for domestic and office environments
- Ergonomic fingerprint sensor placement
- Easy installation with step-by-step instructions
- Can be paired with a Gateway for Remote Access & Management
- Safe Operating Temperature: -20°C to 50°C
- 3 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x ELEV64 Smart Lock Handle Set
- 4 x AAA Batteries
- 1 x Adjustable Latch (60–70mm backset)
- 1 x Fitting Template
- 1 x Instruction Manual
SPECIFICATIONS
| Specification | Details |
|---|---|
| Finish | Silver |
| Suitable Door Thickness | 35 - 50 mm |
| Spindle Size | 8 mm |
| Handle Projection | 70 mm |
| Rose Size | 64 mm |
| Lever Length | 145 mm |
| Latch Type | Adjustable (60 - 70 mm Backset) |
| Power Supply | 4 x AAA Alkaline Batteries |
| Battery Life | Approx. 10,000 Openings |
| Warranty | 3 Years More Info |
