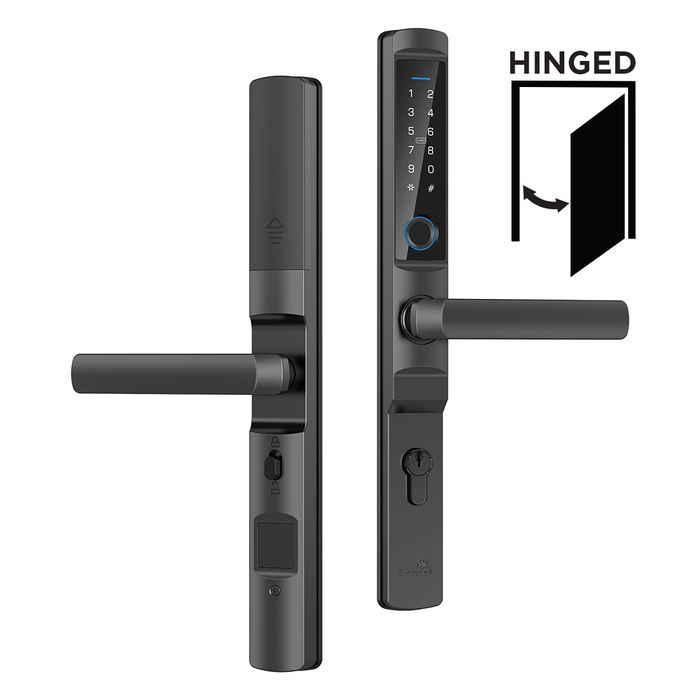

'ELEV36' SMART DOOR LOCK - Hinged *BLACK* (Art. ELEV36-BLK-H Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. ELEV36-BLK-H25 'E-Series' Euro Narrow Leverset Smart Door Lock in Matte Black is designed for hinged door installations in both commercial and residential settings.
This smart lock features fingerprint, digital PIN code, RFID tag, and mobile app access. It retrofits existing Euro mortice locks and offers double-point locking for enhanced security. The external handle is IP66-rated, making it suitable for indoor and outdoor use.
LOCKING MECHANISMS
- Double-point locking via Smart Euro Mortice Lock
- Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder
- Deadbolt activation by lifting the lever handle
- Compatible with TTLOCK App for full lock management
- Optional G2 & G3 Gateway accessories for remote access
ACCESS METHODS
- TTLOCK App (Bluetooth)
- PIN Code
- RFID Tag (up to 300 programmable users)
- Fingerprint (sensor positioned for natural thumb access)
- Physical Key Override (C4 Half Euro Cylinder)
PERFORMANCE
- IP66 Rated (external handle)
- Retrofit design for existing mortice locks
- Suitable for hinged doors in residential and commercial environments
- Safe Operating Temperature: -20°C to 50°C
- 3 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x ELEV36 Smart Lock Handle Set
- 2 x RFID Key Fobs
- 4 x Screw/Spindle Packs (for varying door thicknesses)
- 4 x AAA Batteries
- 1 x Smart Euro Mortice Lock (custom backset)
- 1 x 6-Pin C4 Half-Euro Cylinder
- 1 x Fitting Template
- 1 x Instruction Manual
SPECIFICATIONS
| Specification | Details |
|---|---|
| Finish | Matte Black |
| Dimensions (L x W) | 345 x 36 mm |
| Pitch (cylinder centre to handle centre) | 85 mm |
| IP Rating | IP66 (External Handle Only) |
| Lock Backset Range | 25 - 70 mm |
| Standard Faceplate Dimensions (L x W) | 240 x 22 mm ( See downloads for more) |
| Standard Strike Plate Dimensions (L x W) | 198 x 24 mm ( See downloads for more) |
| Suitable Door Thickness | 28 - 50 mm |
| Spindle Size | 8 mm |
| Screw Type | M5 |
| Lever Projection | 30 mm |
| Lever Length | 130 mm |
| External Handle Protrusion | 58 mm |
| Power Supply | 4 x AAA Alkaline Batteries |
| Battery Life | Approx. 10,000 Openings |
| Warranty | 3 Years More Info |
