'1-Point' PANIC EXIT - Standard (Art. SGPD250 Series)
Description
PRODUCT OVERVIEW

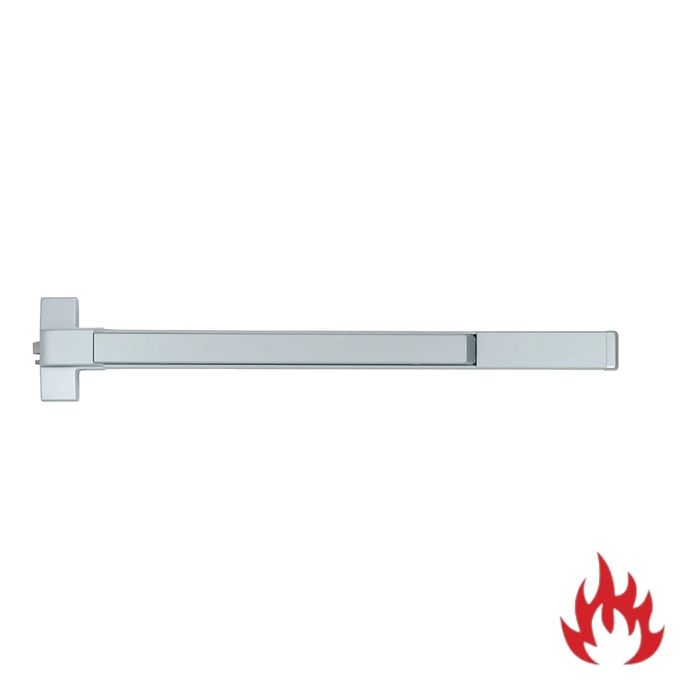

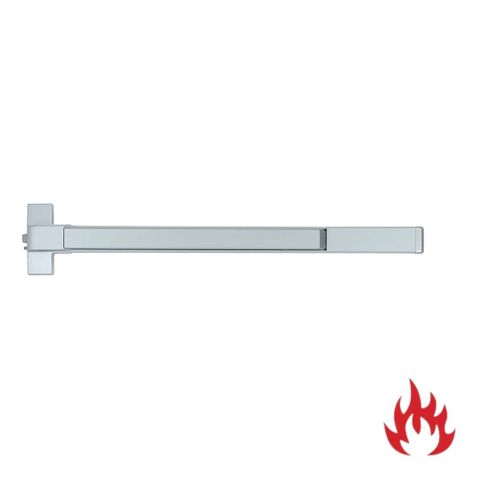

The LOCKTON Art. SGPD250-F-SS '1-Point Locking' PANIC EXIT DEVICE – FIRE RATED is a rim-type panic bar designed for emergency egress in commercial and fire-rated environments.
Made from 304B stainless steel, it features a high shock-resistant latching mechanism and corrosion-resistant internal components. This device is suitable for standard door sizes and can be cut down to fit smaller doors. It complies with BS EN1125 standards and has been fire tested for up to 2 hours.
LOCKING MECHANISMS
- Single-point locking mechanism
- Latch automatically dead-latches when door is closed
- High shock-resistant latch
- Rim type installation
- Non-handed design
ACCESS METHODS
- Internal push bar activation
- External access via 201 “Round” Cylinder (optional)
- Compatible with external access furniture
PERFORMANCE
- 304B Stainless Steel construction
- Corrosion-resistant internal components
- Fire tested up to 2 hours
- Complies with BS EN1125
- Suits standard door size (820mm); cuttable by up to 170mm
- 10 Year Warranty*
INCLUDED COMPONENTS
- 1 x Fire Rated Panic Exit Device (Panic Bar)
- Installation Template
- Certification Documents
SPECIFICATIONS
| Specification | Details |
|---|---|
| Material | 304B Stainless Steel |
| Finish | Silver |
| Handing | Non-Handed |
| Door Width | 820 mm (cuttable by up to 170 mm) |
| Fire Rating | Up to 2 Hours |
| Compliance | BS EN1125 |
| Warranty | 10 Years More Info |
