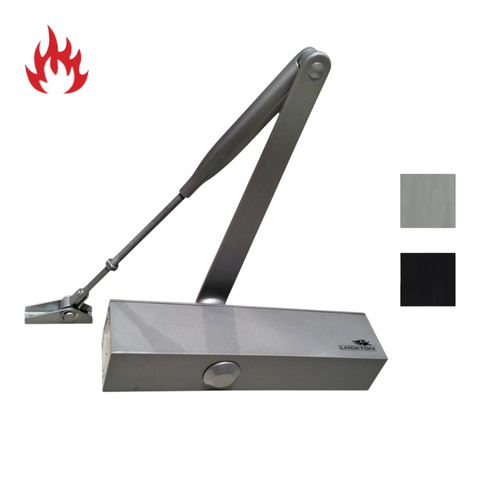

'165' DOOR CLOSER (Adj. Sizes: 2 - 6) - Rack & Pinion (Art. SGDC165 Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. SGDC165 165 Series Rack & Pinion Door Closer is a heavy-duty solution for commercial, industrial, and residential door control applications.
Designed to suit both left and right-handed doors, as well as inward and outward opening configurations, this closer is ideal for timber and metal doors. It includes standard and parallel arm brackets and is compatible with optional hold-open or sliding track arms.
LOCKING MECHANISMS
- Rack & Pinion operation
- Adjustable closing, latching speed & backcheck
- Delayed action function between 180°–65°
- Optional hold-open or sliding track arm available
- Fire rated up to 2 hours (AS1905, AS1530)
- Certified to BS EN 1154:1997
ACCESS METHODS
- Automatic mechanical closing
- Adjustable via hex key for door size and speed
- Manual override possible
PERFORMANCE
- Suits door sizes 2–6 via mounting template adjustment
- Size #2: Door width 850mm / Weight 40kg
- Size #3: Door width 950mm / Weight 60kg
- Size #4: Door width 1100mm / Weight 80kg
- Size #5: Door width 1250mm / Weight 100kg
- Size #6: Door width 1400mm / Weight 120kg
- Closing range: 180° to 15°
- Latching speed range: 15° to 0°
- Cycle tested to 500,000 operations
- 10 Year Warranty*
INCLUDED COMPONENTS
- 1 x LOCKTON '165 Series' Door Closer
- Standard arm
- Parallel arm bracket
- Timber & metal screw packs
- Installation instructions
SPECIFICATIONS
| Specification | Details |
|---|---|
| Operation Type | Rack & Pinion |
| Door Compatibility | Left & Right Handed; Inward & Outward Opening |
| Size Range | 2-6 (adjustable) |
| Finish | Silver or Matte Black |
| Fire Rating | AS1905 / AS1530 (2 Hours) |
| Certification | BS EN 1154:1997 |
| Cycle Rating | 500,000 operations |
| Warranty | 10 Years More Info |
