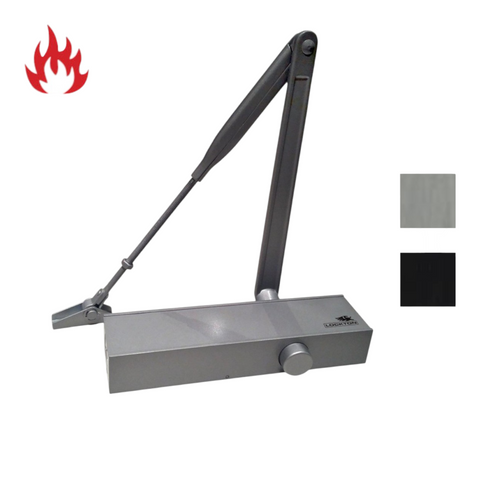

'160' DOOR CLOSER (Adj. Sizes: 2 - 4) - Rack & Pinion (Art. SGDC160 Series)
Description
PRODUCT OVERVIEW
The LOCKTON 160 Series Door Closer is a rack and pinion surface-mounted closer designed for commercial, light industrial, and residential applications.
With adjustable power sizing (2–4), it offers flexibility across a wide range of door types and environments.
Ideal for office doors, apartment entries, retail shopfronts, and healthcare facilities, the 160 Series delivers smooth, controlled door operation with long-term reliability.
CLOSING MECHANISM
- Rack & Pinion mechanism for consistent performance
- Adjustable power size EN 2–4
- Size #2: Door width 850mm & Weight 40kg
- Size #3: Door width 950mm & Weight 60kg
- Size #4: Door width 1100mm & Weight 80kg
- Backcheck function to prevent door/wall damage
- Adjustable closing and latching speed (with hex key)
- Non-handed design for universal installation
- Suitable for regular, parallel arm, and over-door mounting
ACCESS METHODS
- Manual door operation
- Compatible with standard door hardware and locking systems
- Supports fire-rated and non-fire-rated door sets
PERFORMANCE
- Fire rated up to 2 hours (when installed to compliant doors)
- Excellent corrosion resistance, tested to Grade 3 (EN), 96 hour salt spray test
- Durable construction for high-traffic environments, tested to exceed 500,000 Cycles (EN)
- Smooth and quiet operation
- 10 Year Warranty*
INCLUDED COMPONENTS
- 1 x LOCKTON 160 Series Door Closer
- 1 x Arm Set
- 1 x Fixing Kit
- Installation Instructions
SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Size | Adjustable EN 2–4 |
| Mounting | Regular, Parallel Arm, Overhead |
| Backcheck | Yes |
| Finish Options | Silver or Matte Black |
| Closing Speed | Adjustable |
| Latching Speed | Adjustable |
| Electric Strike Compatibility | Yes |
| Fire Rating | Up to 2 Hours |
| Durability Rating (EN) | 500,000+ Cycles |
| Corrosion Rating (EN) | Grade 3 (96 Hours - Salt Spray Test) |
| Warranty | 10 Years More Info |
