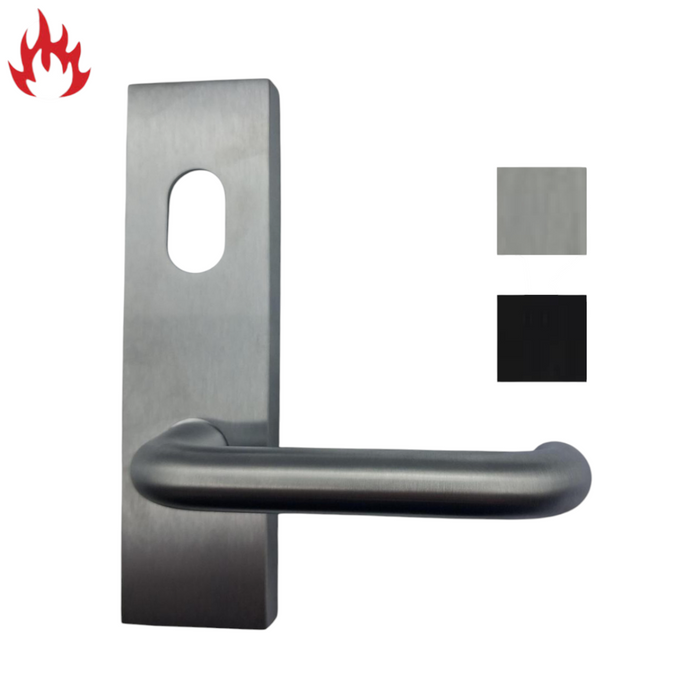

'Wide' LOCK FURNITURE - Square End (Art. RND Series)
Description
PRODUCT OVERVIEW
The LOCKTON Wide Square End Mortice Furniture Series is designed to retrofit most existing wide plate furniture and suit Australian mortice locks with 60mm and 95mm backsets.
Ideal for commercial, residential, and institutional applications, this range features a modern square-end design and handles that comply with DDA accessibility requirements under AS1428.1-2009.
Fire tested and rated for up to 4 hours, the series is available in Satin Chrome or Matte Black finishes for a sleek, professional appearance.
LOCKING MECHANISMS
- Suits most 60mm Australian mortice locks
- Compatible with mortice locks (60mm and 95mm backsets)
- Multiple Furniture Configurations to suit a variety of access requirements (such as Cylinder Hole, Turn Snib, Pull Handle etc)
- Quality return spring for lever operation.
ACCESS METHODS
A wide variety of Access Options such as:
- Operated via physical key through cylinder hole
- Lever handle for ease of use.
- Turn Snib in Handle (Multiple Options)
- Emergency (Turn) Release (Multiple Options)
- Blank Plates
- Pull Handles
- Dual Cylinder/Key Access
PERFORMANCE
- Solid brass construction for strength and durability
- Fire tested up to 4 hours
- Durability rating: 500,000 cycles
- Physical security rating: SL8
- Cylinder security rating: Sc8
- 10 Year Warranty*.
INCLUDED COMPONENTS
- 1 × Wide Plate Furniture (Square End)
- 4 × M5 fixing screws (External Furniture Only)
- Installation instructions.
FUNCTIONS & RANGE
External Plates
- Art. SQ-05V-OSET-D-SC – ‘D’ Handle Only
- Art. SQ-04V-OSET-D-SC – Cylinder Hole & ‘D’ Handle
- SQ-01C-25-SCP – Cylinder Hole & Lever
- SQ-04C-SCP – Cylinder Hole Only
- SQ-10C-SCP – Dual Entry
- SQ-03C-25-SCP – Emergency Turn & Lever
- SQ-53C-25-SCP – Ind. Emergency Turn & Lever
- SQ-59C-SCP – Ind. Emergency Turn Only
- SQ-02C-25-SCP – Lever Only
- SQ-05C-SCP – Plain Plate
Internal Plates
- SQ-01V-25-SCP – Cylinder Hole & Lever
- SQ-04V-SCP – Cylinder Hole Only
- SQ-13VDA-25-SCP – DA Snib & Lever
- SQ-06VDA-2-SCP – DA Snib Only
- SQ-06VDA-SCP – DA Snib Only (Old)
- SQ-63VDA-25-SCP – Ind. DA Snib & Lever
- SQ-07VDA-SCP – Ind. DA Snib Only
- SQ-02V-25-SCP – Lever Only
- SQ-05V-SCP – Plain Plate
- SQ-13V-25-SCP – Snib & Lever.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Plate Dimensions (L x W x D) | 165 mm x 46 mm x 12 mm |
| Mounting Screw Spacing | 150 mm |
| Material | Solid Brass |
| Finish | Satin Chrome or Matte Black |
| Handing | Easy Change Handing |
| Mounting Screw Size | M5 x 55 mm |
| Backset Compatibility | 60 mm & 95 mm |
| Warranty | 10 Years More Info |
