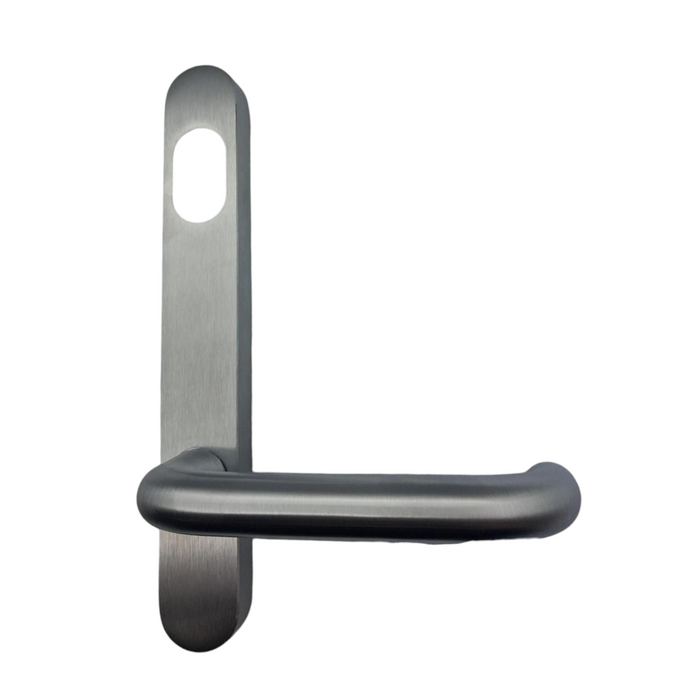

'Narrow' LOCK FURNITURE - Round End (Art. NRND Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. Narrow Round End Mortice Furniture Series is designed for 23mm and 30mm Australian mortice locks and retrofits most existing narrow plate furniture.
Engineered for aluminium and steel framed doors in commercial, residential, and institutional applications, it suits narrow stile mortice locks with 23mm and 30mm backsets. Finished in Satin Chrome for a sleek, professional look.
LOCKING MECHANISMS
- Compatible with narrow stile mortice locks (23mm and 30mm backsets)
- Multiple Furniture Configurations to suit a variety of access requirements (such as Cylinder Hole, Turn Snib, Pull Handle etc.)
- Quality return spring for lever operation
ACCESS METHODS
A wide variety of Access Options such as:
- Operated via physical key through cylinder hole
- Lever handle for ease of use
- Turn Snib w/ Handle
- Pull Handles
- Dual Cylinder/Key Access
PERFORMANCE
- Solid brass construction for strength and durability
- 10 Year Warranty*
INCLUDED COMPONENTS
- 1 × Narrow Plate Furniture (Round End)
- 4 × M4 fixing screws (External Furniture Only)
- Installation instructions
FUNCTIONS & RANGE
External Plates
- NRND-01C-25-SCP – Cylinder Hole & Lever
- NRND-04C-SCP – Cylinder Hole Only
- NRND-10C-SCP – Dual Entry
- NRND-02C-25-SCP – Lever Only
- NRND-04V-OSET-D-SC – Cylinder Hole & ‘D’ Handle
Internal Plates
- NRND-01V-25-SCP – Cylinder Hole & Lever
- NRND-04V-SCP – Cylinder Hole Only
- NRND-02V-25-SCP – Lever Only
- NRND-13V-25-SCP – Snib & Lever
- NRND-13VDA-25-SCP – DA Snib & Lever
SPECIFICATIONS
| Specification | Details |
|---|---|
| Plate Dimensions (L x W x D) | 185 mm x 25 mm x 14 mm |
| Mounting Screw Spacing | 160 mm |
| Material | Solid Brass |
| Finish | Satin Chrome |
| Handing | Easy Change Handing |
| Mounting Screw Size | M4 x 55 mm |
| Backset Compatibility | 23 mm & 30 mm |
| Warranty | 10 Years More Info |
