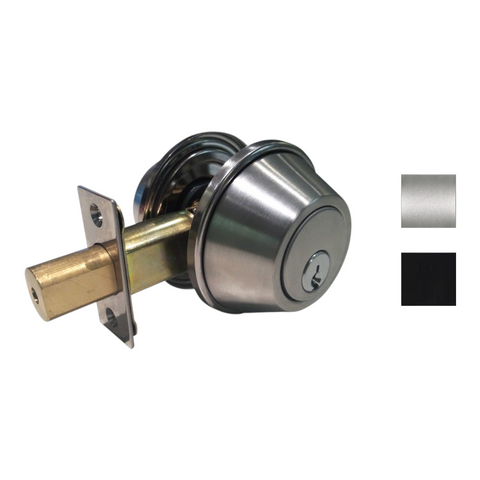

Commercial DEADBOLT - Single Cylinder (Art. SGDB4010 Series)
Description
PRODUCT OVERVIEW
The LOCKTON Art. SGDB4010 '4000 Series' Single Cylinder Deadbolt is a commercial-grade locking solution designed for timber and metal doors in residential, commercial, and industrial environments.
Featuring a robust 25mm throw bolt with a saw-resistant hardened steel roller pin, this deadbolt provides high security and durability. It includes a turn snib for internal locking and is compatible with restricted key systems.
Available in Satin Stainless Steel or Matte Black finish for modern architectural styling.
LOCKING MECHANISMS
- Single cylinder deadbolt with internal turn snib
- 25mm throw bolt with hardened steel roller pin
- Adjustable backset: 60mm–70mm
- Compatible with restricted key systems
- Tested to meet commercial specifications
ACCESS METHODS
- Operated via physical key (external) and turn snib (internal)
- Cylinder profile: C4 (LW5)
- Supplied with 6-pin C4 PD cylinder
- Re-keyable to suit restricted systems
PERFORMANCE
- Commercial-grade construction
- Saw-resistant bolt
- Cycle tested to 400,000 operations
- Suits door thickness: 35mm–45mm (up to 50mm without roses)
- 10 Year Warranty*
INCLUDED COMPONENTS
- 1 x LOCKTON '4000 Series' Single Cylinder Deadbolt
- 1 x 6-pin C4 PD cylinder
- 2 x Keys
- Fixing screws
- Strike plate
- Installation instructions
SPECIFICATIONS
| Specification | Details |
|---|---|
| Backset | Adjustable 60 mm – 70 mm |
| Bolt Throw | 25 mm |
| Cylinder Profile | C4 (LW5) |
| Cylinder Type | 6-Pin PD |
| Door Thickness Range | 35 mm - 45 mm (up to 50 mm without roses) |
| Finish Options | Satin Stainless Steel or Matte Black |
| Cycle Rating | 400,000 Operations |
| Warranty | 10 Years More Info |
