'Commercial' DOOR HINGE - Fixed Pin (Art. FP100 Series)
Description
PRODUCT OVERVIEW

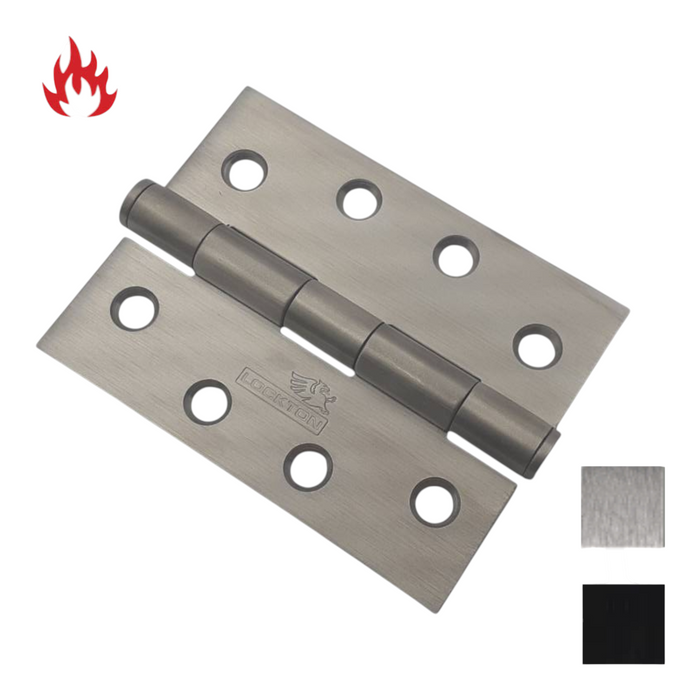

The LOCKTON Art. HG-FP Series Fixed Pin Door Hinge Range is made from premium 304 Stainless Steel for strength and durability.
Designed for residential, commercial, and fire-rated door applications, these hinges provide a secure and stable solution for entrance doors or outward-opening doors weighing up to 80 kilograms.
Available in 75mm or 100mm sizes and Satin Stainless Steel or Matte Black finishes, the HG-FP Series ensures reliable performance and long-lasting quality.
FUNCTION & DESIGN
- Fixed pin mechanism for secure door mounting
- Designed for fire-rated and heavy-use doors
- Suits both left- and right-handed doors
- Available in Satin Stainless Steel or Matte Black finish for modern aesthetics
PERFORMANCE
- Corrosion-resistant 304 stainless steel
- Supports doors up to 80kg
- Fire tested and passed up to 2 hours
- Suits door thickness: 35mm to 45mm
- 10 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x LOCKTON Fixed Pin Door Hinge – 100 x 75mm
- 8 x Timber Fixing Screws
- 4 x Metal Fixing Screws
SPECIFICATIONS
| Specification | Details |
|---|---|
| Type | Fixed Pin Door Hinge |
| Material | 304 Stainless Steel |
| Finish | Satin Stainless Steel or Matte Black |
| Dimensions (L x W x T) | 100 x 75 x 2.5 mm & 100 x 100 x 2.5mm |
| Max Door Weight | 80 kg |
| Handing | Left & Right |
| Fire Rating | 2 Hours |
| Warranty | 10 Years More Info |
