'SKP' SMART KEYPAD - Narrow (Art. SKP Series)
Description
PRODUCT OVERVIEW

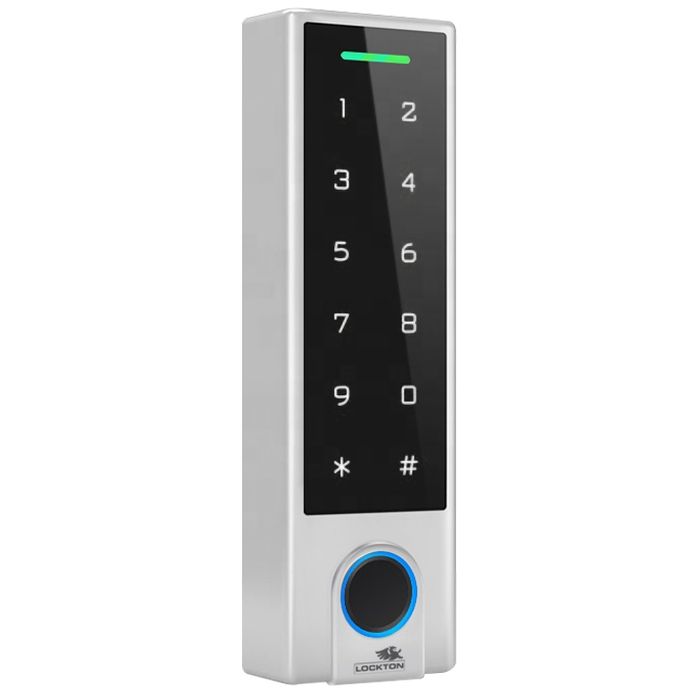

The LOCKTON Art. SKP-N1-FS ‘E-Series’ Smart Keypad – Narrow is a compact, stand-alone smart access solution that accepts fingerprint, RFID tag, PIN code, and mobile app credentials.
Designed with a market-standard footprint, it easily replaces traditional push-code keypads while upgrading them to advanced smart access with features such as user management, temporary codes, audit trails, and remote control via the TTLOCK app.
A built-in single-door controller reduces installation costs and complexity, and the unit is compatible with most existing or new electric strikes, maglocks, and access control systems.
Supporting up to 1,350 users and integrating with the optional G5 Gateway for remote access, the SKP-N1-FS provides a practical and modern approach to access control.
- Built-in single door controller
- Compatible with electric strikes, maglocks, and access control systems
- IP66-rated keypad for outdoor use
- Supports TTLOCK platform for multi-device management
- Fingerprint recognition (sensor ergonomically placed at bottom)
- Digital PIN Code
- RFID Tag
- Bluetooth E-Key via TTLOCK App
- Remote access via G5 Gateway
- Compact and durable design
- Weather-resistant (IP66)
- Supports up to 1350 users
- 3 Year Warranty (*)
- 1 x Wall Mounting Kit (4 x Screws, 4 x Wall Plugs, 1 x Allen Key)
- 1 x IP66 Kit (45g Electrical Wiring Sealant)
- 1 x Instruction Manual
- 2 x LOCKTON E-Series RFID Tags
| Specification | Details |
|---|---|
| Finish | Silver Body with Black Keypad and Sensing Areas |
| Dimensions (W x H x D) | 43.5 x 148 x 22 mm |
| Supporting Systems | Android 4.3 / iOS 7.0 & Above |
| Stand-by Current | 84 mA |
| Operating Current | ≈ 150mA |
| Power Supply | DC 12V |
| IP Rating | IP66 |
| RFID Tag Capacity | 1000 |
| PIN Code Capacity | 250 |
| Fingerprint Capacity | 100 |
| Bluetooth E-Keys | Unlimited |
| Warranty | 3 Years More Info |
