Automatic DOOR CLOSER (Art. DSW100 Series)
Description
PRODUCT OVERVIEW

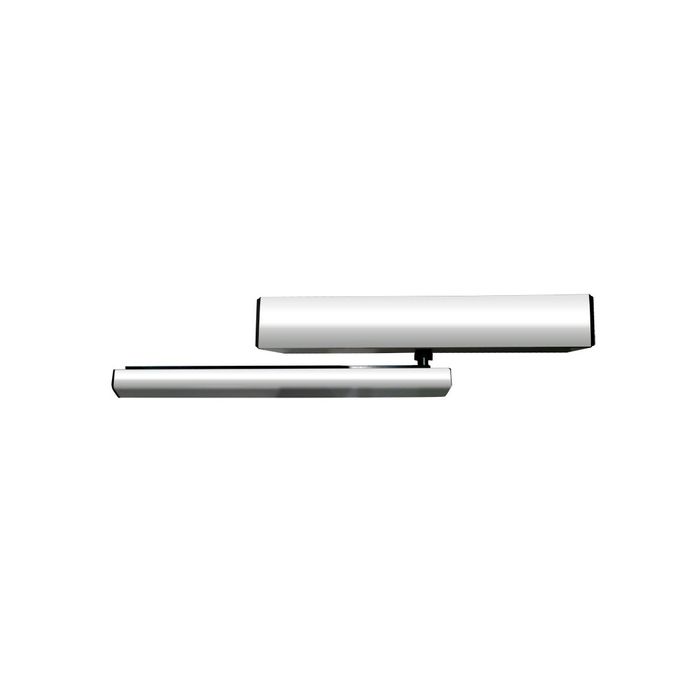

The LOCKTON Art. DSW100 Series Auto Door Closer is a low-noise automatic door operator designed for single-leaf doors in offices, hospitals, commercial, and industrial environments.
Compatible with both push and pull opening doors, this unit provides safe and reliable performance with intelligent re-opening if contact is made with an obstacle. It supports integration with sensors, access control systems, safety beams, and electric lock power outputs.
The Door Closer is also supplied with 2 x fixed code remotes for remote access.
FUNCTION & DESIGN
- B-Type - Pull OR G-Type - Push
- Low-noise operation
- Intelligent reverse re-opening on contact
- Fast and effective installation
- Compatible with access control and sensor systems
PERFORMANCE
- Smooth and adjustable opening/closing speeds
- Safe operation with low manual force
- Operates in a wide temperature range
- 12-Month Warranty (*)
INCLUDED COMPONENTS
- 1 x LOCKTON DSW100 Auto Door Closer
- 2 x Fixed Code Remotes
- 1 x Installation Kit
- 1 x Instruction Manual
SPECIFICATIONS
| Specification | Details |
|---|---|
| Door Configuration | Single Leaf |
| Max Door Weight | ≤100kg |
| Max Door Width | ≤1200mm |
| Power Voltage | AC 220V ±10%, 50–60Hz |
| Power Consumption | 50W |
| Opening Speed | 250–450mm/s (adjustable) |
| Closing Speed | 250–450mm/s (adjustable) |
| Opening Time | 3–7s (adjustable) |
| Hold-Open Time | 1–30s (adjustable) |
| Manual Force | <30N |
| Noise Level | ≤55dB |
| Operating Temperature | -20°C to +50°C |
| Finish | Silver |
| Warranty | 12 Months More Info |
