'Round Rose' LOCK FURNITURE (Art. CYL-53 Series)
Description
PRODUCT OVERVIEW

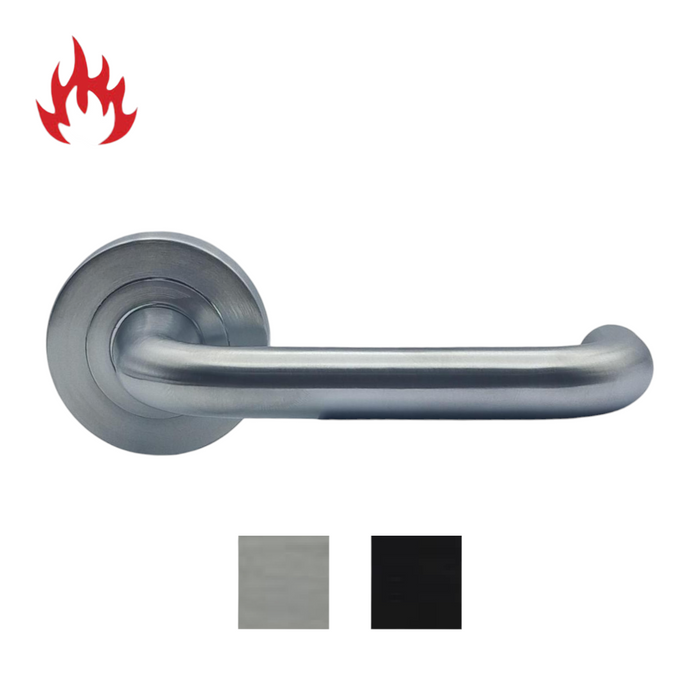

The LOCKTON Art. CYL-53-25 ‘Round’ Passage Furniture Set is a cylindrical rose lever set designed for doors fitted with Australian standard 60mm mortice locks.
Crafted with a solid brass rose and zinc handle, this set features a 53mm diameter rose and supports both vertical and horizontal through-fix mounting. It includes a rubber ring to hold the trim cover and is supplied with a solid spindle, making it ideal for residential and commercial applications.
Available in Satin Chrome Plate or Matte Black finishes for modern architectural styling.
LOCKING MECHANISMS
- Passage function (non-locking)
- Compatible with most 60mm Australian mortice locks
- Supplied with solid spindle
- Vertical or horizontal through-fix mounting options
ACCESS METHODS
- Operated via lever handle
- No key or snib required
- Designed for free access between rooms
PERFORMANCE
- Solid brass rose with zinc handle
- Fire tested: Passed up to 4 hours
- Complies with AS1428.1-2009 (Disability Access)
- 10 Year Warranty (*)
INCLUDED COMPONENTS
- 1 x Internal Lever
- 1 x External Lever
- 1 x Solid Spindle
- Rubber ring for trim cover
- Fixing hardware
SPECIFICATIONS
| Specification | Details |
|---|---|
| Material | Solid Brass Rose & Zinc Handle |
| Finish | Satin Chrome Plate or Matte Black |
| Rose Size | 53 x 12 mm |
| Lever Length | 122 mm |
| Lever Diameter | 16 mm |
| Protrusion | 60 mm |
| Hole Centres | 41 mm |
| Handing | Easy Change Handing |
| Mounting | Vertical or Horizontal through-fix |
| Door Thickness | 32 - 50 mm |
| Warranty | 10 Years More Info |
